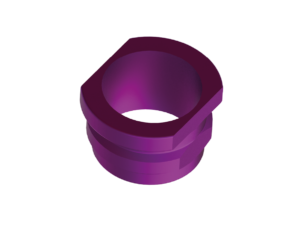

One single sleeve for all implant systems

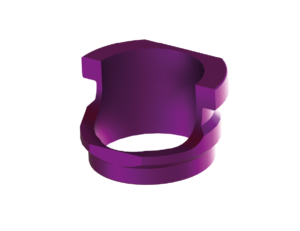

The cut sleeve provides a mesial access to aid when there is difficulty in insterting the drills from above. The lateral opening allows for an easier access in areas where the lenght of the drills would be a hindrance. Thanks to the lateral opening, which is also printed in the guide, it is possible to pass the drills passively.

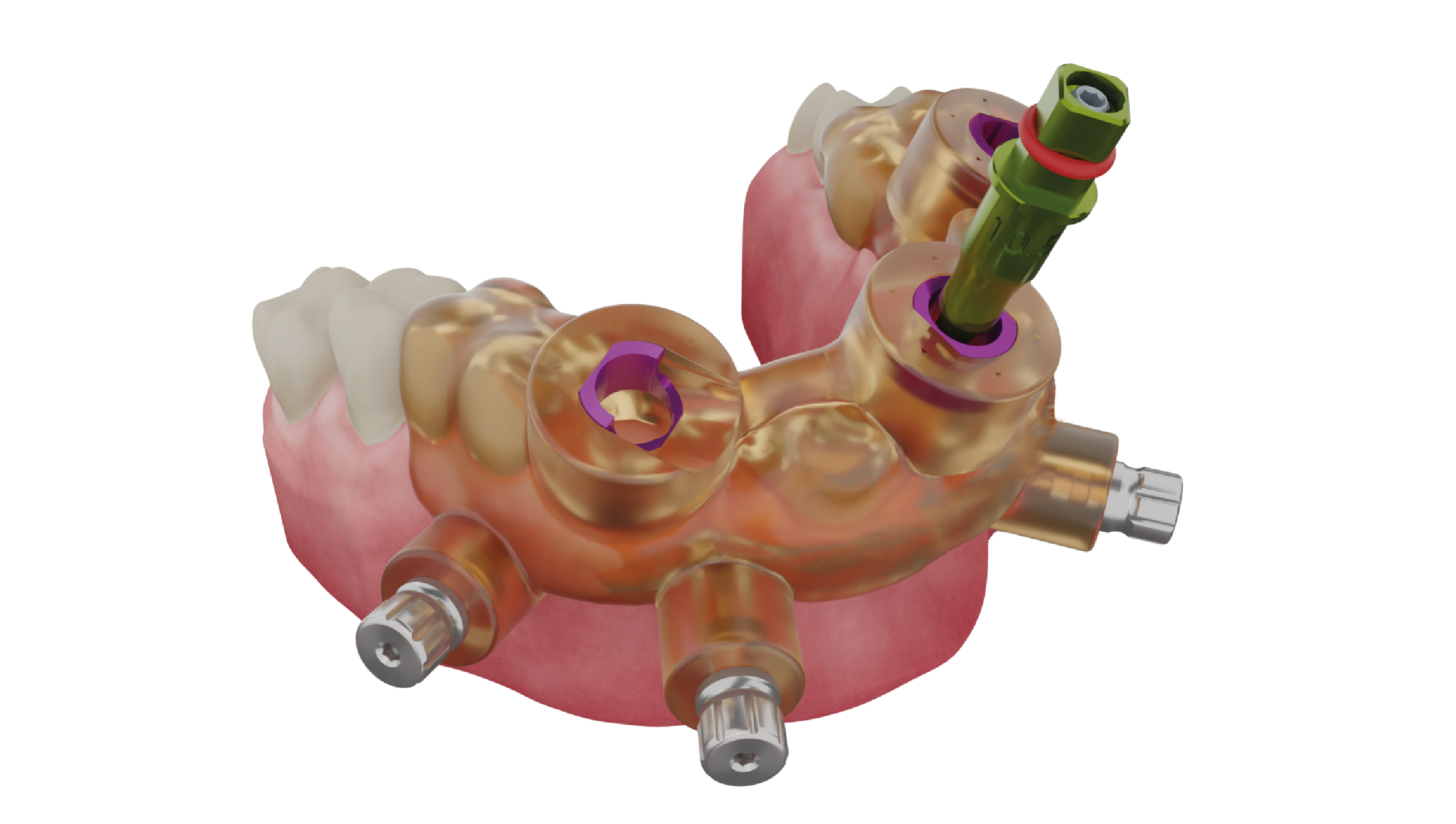

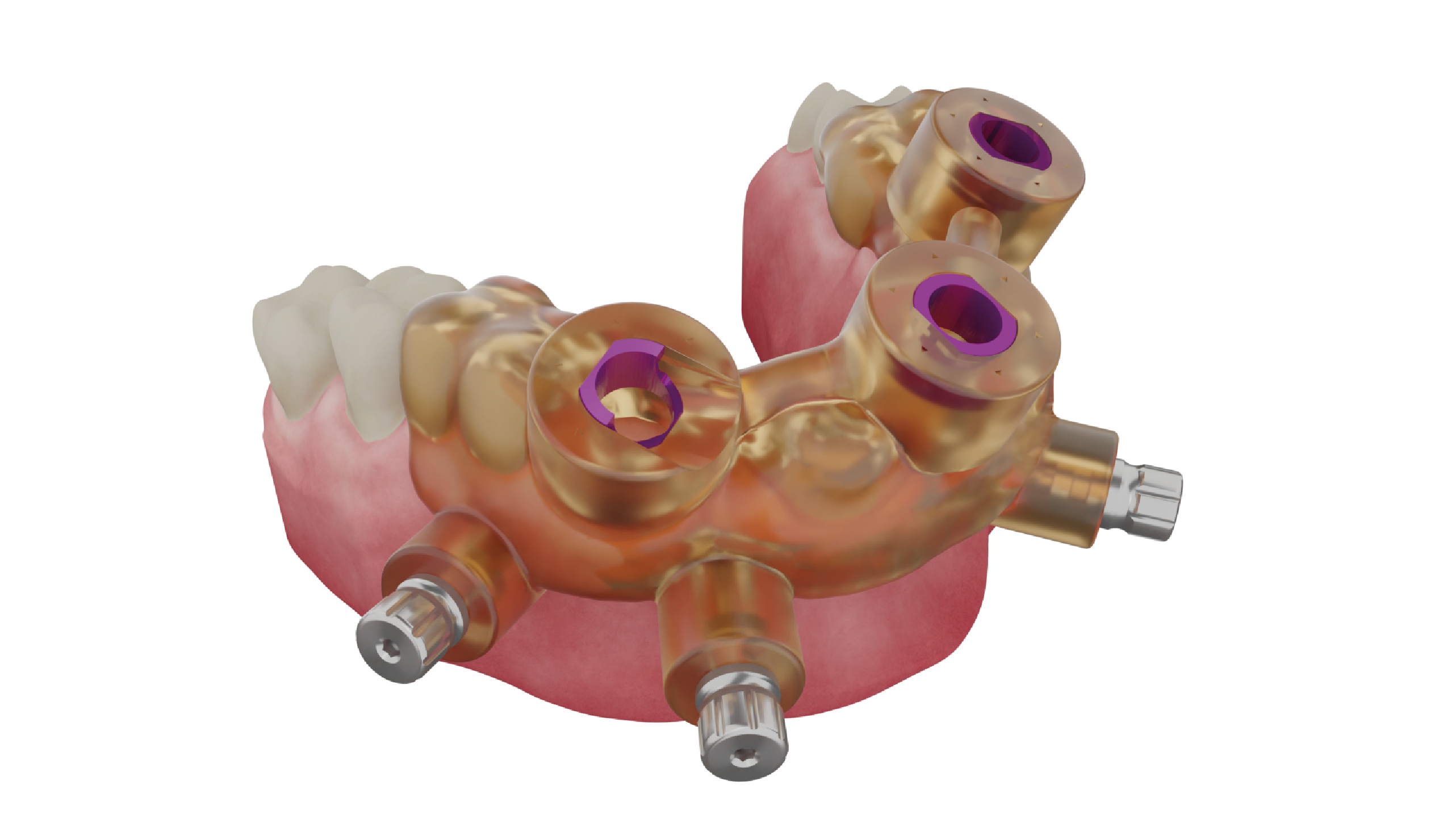

Once fixed to the surgical guide, it allows the guided drilling sequence and the placement of the implant.

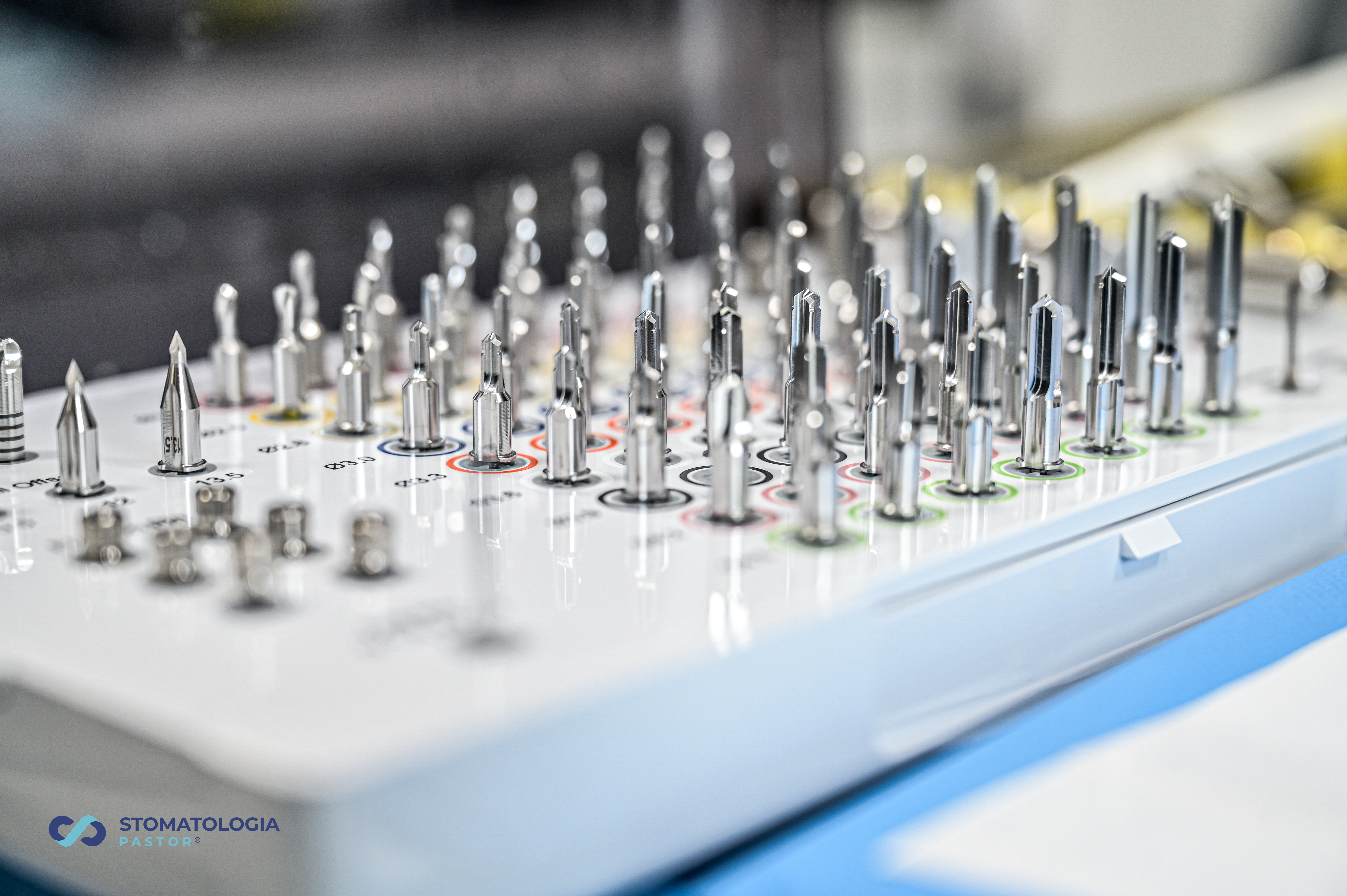

Built-in stoppers ensure precise and accurate drilling to the desired depth. The different drills diameters and lengths allow doctors to plan and decide which is the best solution before starting surgery. The GUIDED DAS SURGICAL KIT is intuitive, easy and effortless, allowing logic and simple procedures.
It is necessary to check our catalogue for the compatibilities and implant position, depending on the needs of each case. Each offset requires different drill lengths.

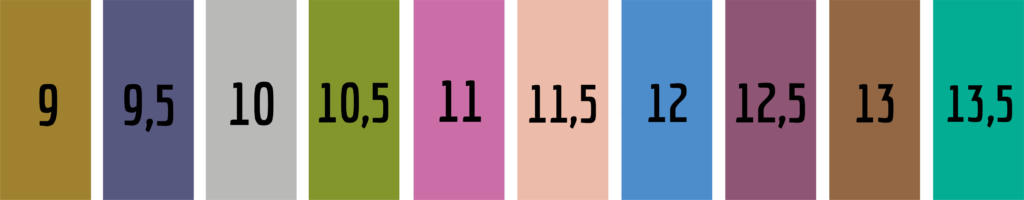

Anodised according to the offset to facilitate its identification in surgery.

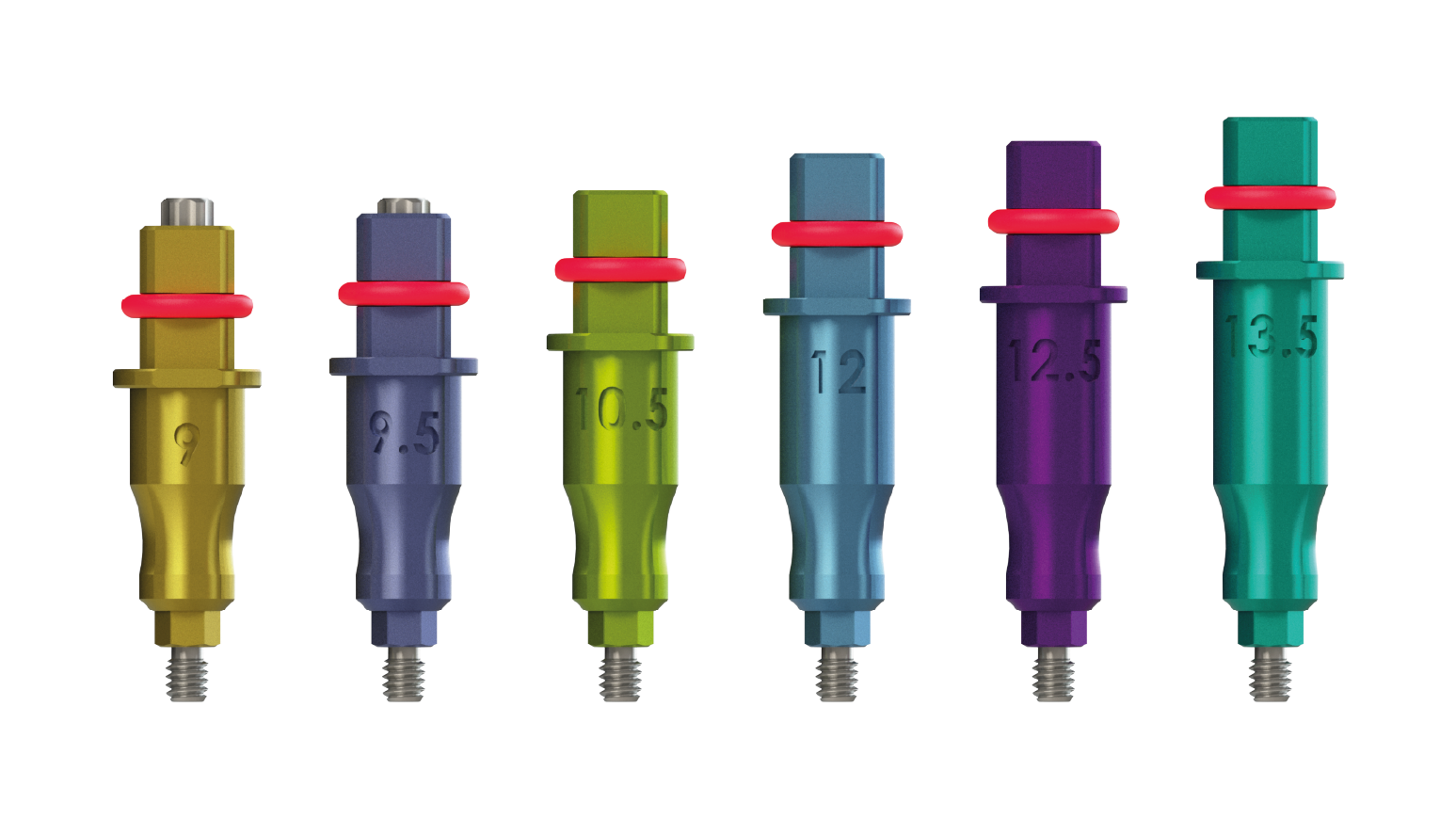

Implant mount is anodised according to the offset to facilitate its identification in surgery.
The implant mount connects to the implant by means of the clamping screw and goes in the direction and to the depth of the implant through the surgical guide. Thanks to the lateral cuts of the stop zone on the implant mount you can also check the position of the connection of the implant through the surgical guide.
Available different offsets
Check the Work offsets by compatibility document to find the information in the Dynamic Abutment Solutions Catalogue.
Example of Alphabio Internal hex - Implant Lenght 10mm

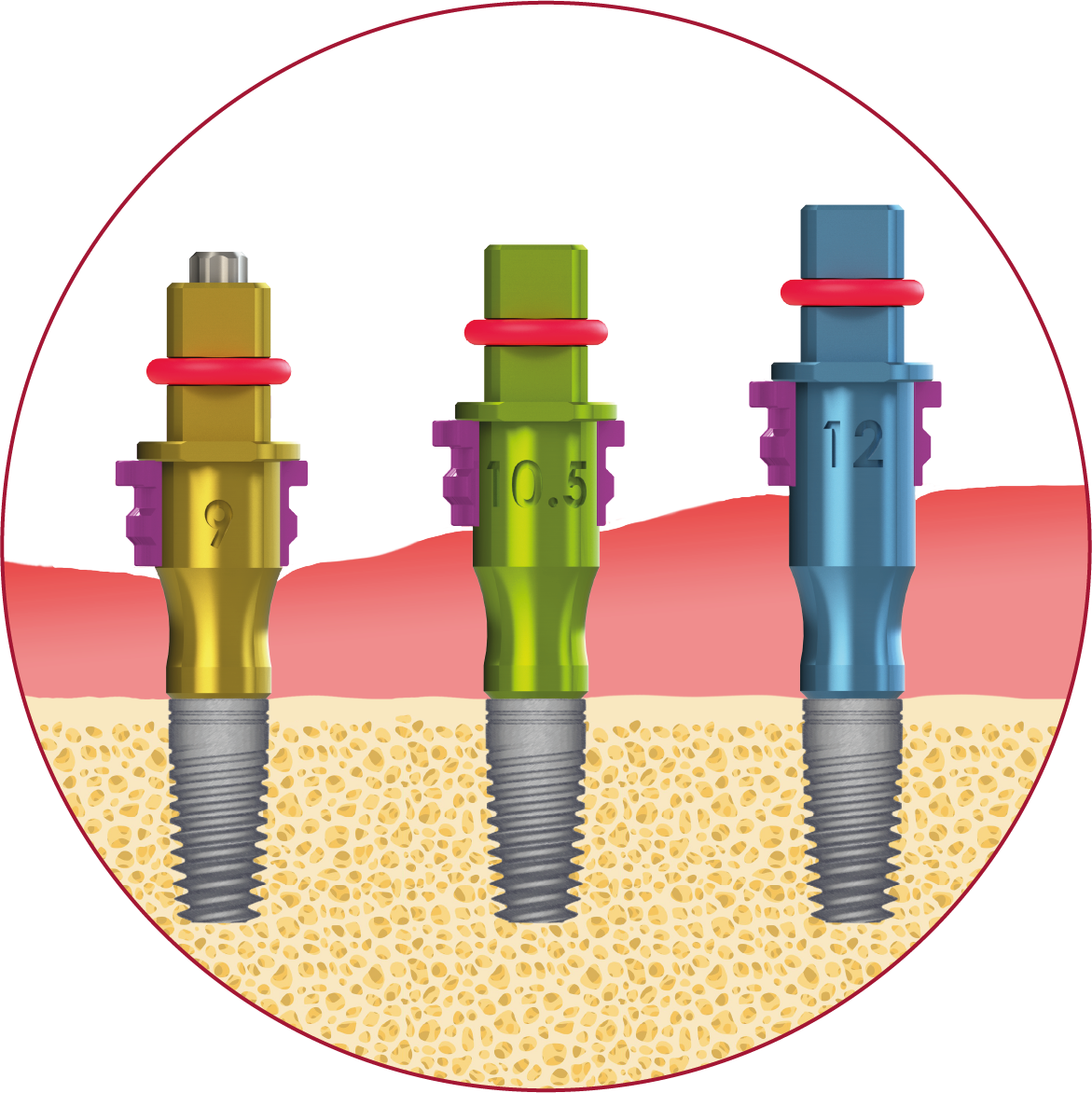

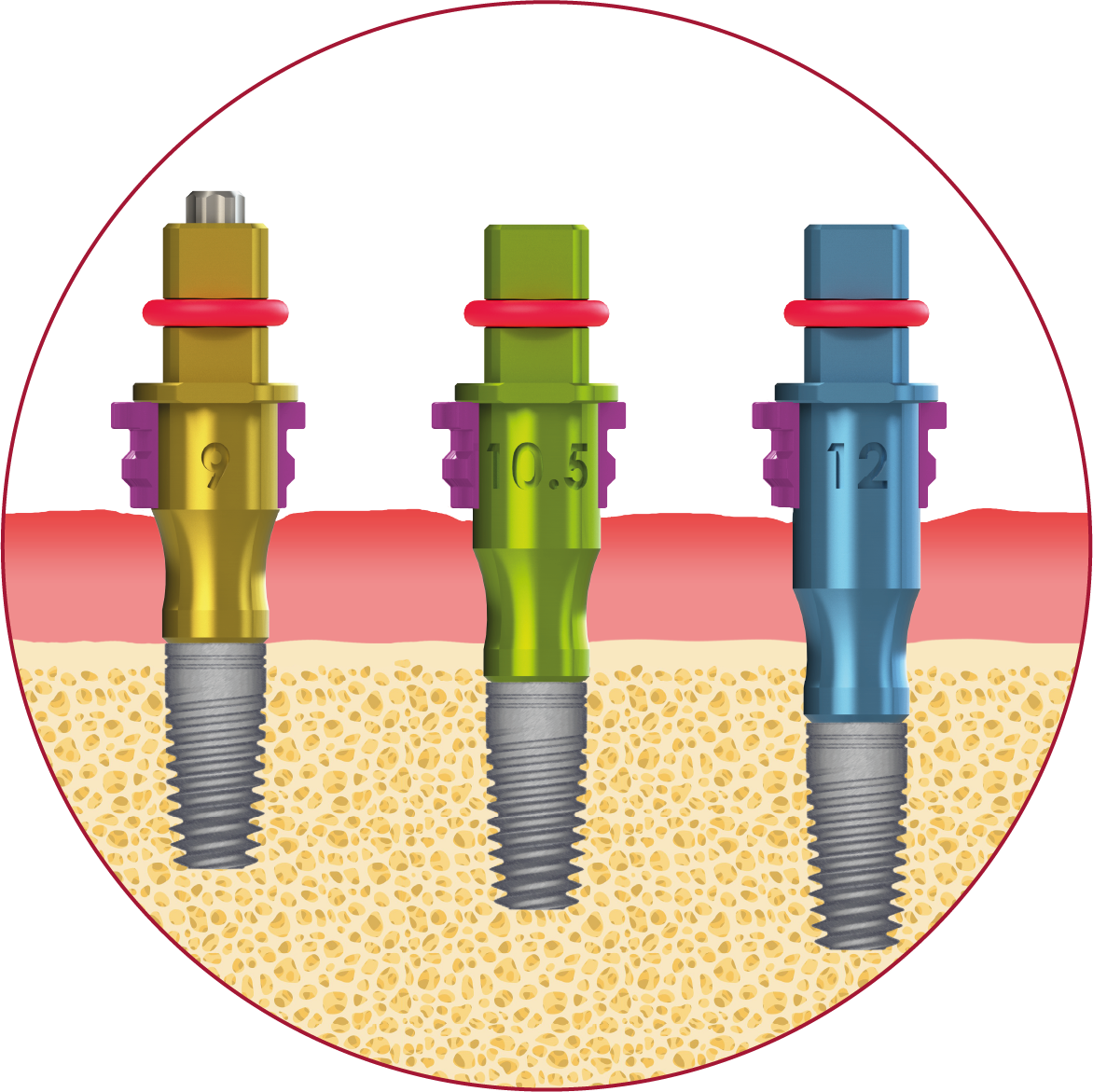

Each implant has different workinf offsets so that the sleeves can be placed on the implant in the desired working position.
